Availability

Neil Ernst

2025-11-19

Refresher: Tactics

Architectural tactics are design approaches to achieve a required quality attribute (text 1. p. 70).

Tactics ignore tradeoffs.

They focus on the solution, and the designer needs to balance tradeoffs.

Availability

Availability is about design to

``enable a system to endure system faults such that a service being delivered by a system remains compliant with its spec”.

A fault is a problem that impairs but does not prevent the software from working. Examples:

  • node (machine/instance) loss in a distributed system
  • service loss in a micro service

Reliability + Recovery

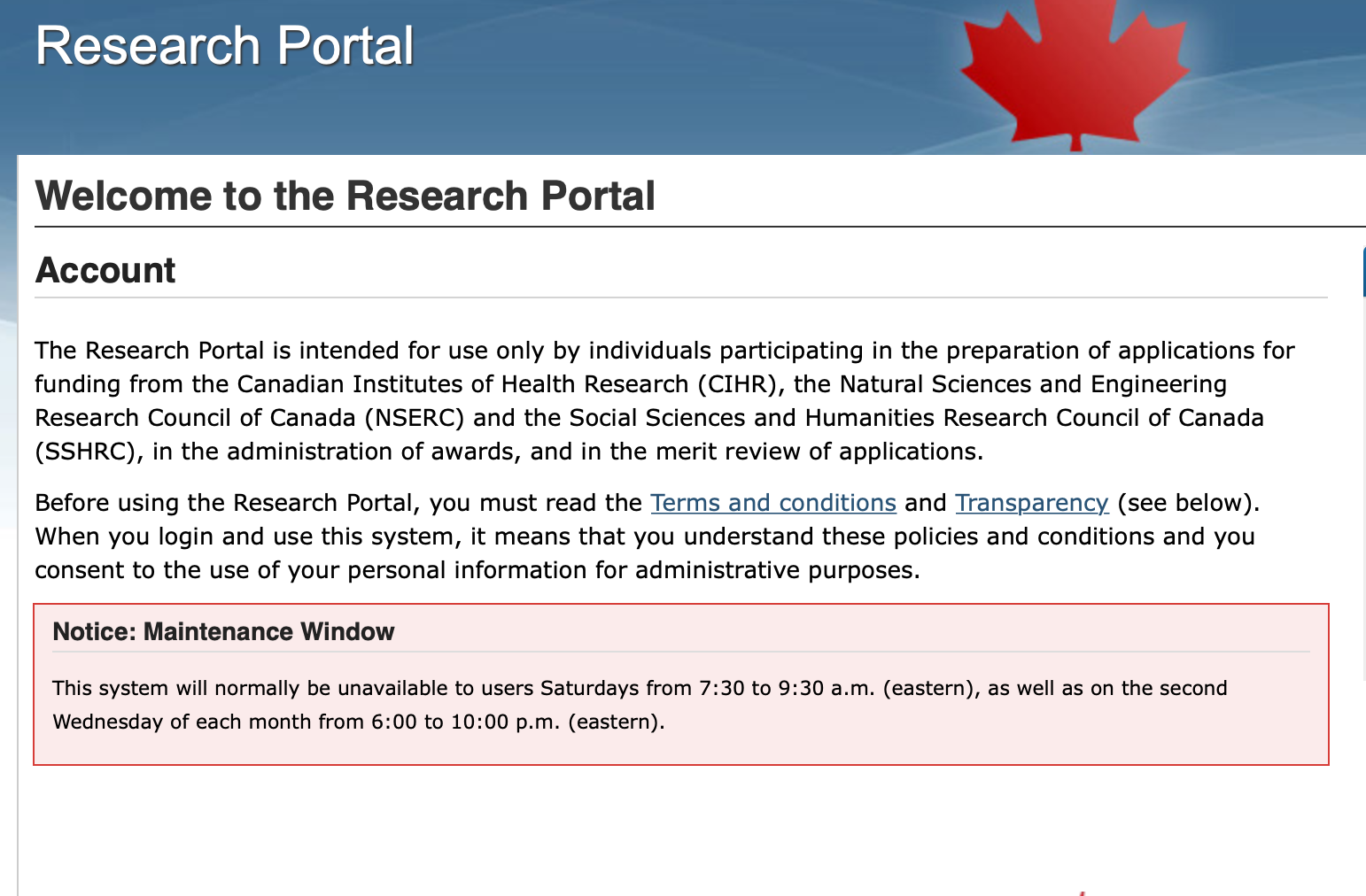

NSERC system maintenance screenshot

Availability - pragmatics

Availability refers to nodes - eg. an API endpoint or IP address for a server - being able to handle requests when needed.

Related to performance, safety, and security.

In particular, we would like to minimize outage time or down time.

Contrast planned outages vs unplanned outages.

Five 9s and more

Availability Downtime/90 days Downtime/Year
99.0 % (‘two-nines’) 21 hr 26 min 3 days, 15.6 hr
99.9% 2hr,10min 8hr, 0min,46sec
99.99 % 12 min, 58 sec 52 min, 34 sec
99.999 % 1 min, 18sec 5 min, 15 sec
99.9999 % 8 sec 32 sec

Availability Measures

Each increase in availability requirement has a corresponding shift in how we would architect to support that more stringent requirement.

At 2 nines, we can tolerate taking an entire machine offline to patch it in a day.

At 6 nines, that machine can effectively never be down.

The difference between these constraints has a marked effect on the design we will choose for our system.

SLAs

How do these manifest in practice? Nowadays they tend to appear in service-level agreements with providers like Microsoft Azure. E.g.,

For all Virtual Machines that have two or more instances deployed across two or more Availability Zones in the same Azure region, we guarantee you will have Virtual Machine Connectivity to at least one instance at least 99.99% of the time.

Azure SLA

For all Virtual Machines that have two or more instances deployed in the same Availability Set, we guarantee you will have Virtual Machine Connectivity to at least one instance at least 99.95% of the time.

Note the constraints in the first SLA: 2 availability zones in the same region. This exposes a bit of how Microsoft’s ops teams are designing the system to meet the SLA.

Common Scenarios

  1. Each availability scenario will consist of an incoming fault, a response, and either the fault being repaired, or masked until it can be properly fixed.
  2. A failure is observable by users, so masking the failure can appear like the system is now available.
  3. A fault is the thing causing a failure.
  4. Common metrics are MTBF (mean time between failures) and MTTR (mean time to repair)

Exercise Availability Scenarios

Write down one three part QAS for availability in your group project.

What response measures do you think are suitable?

Tactics

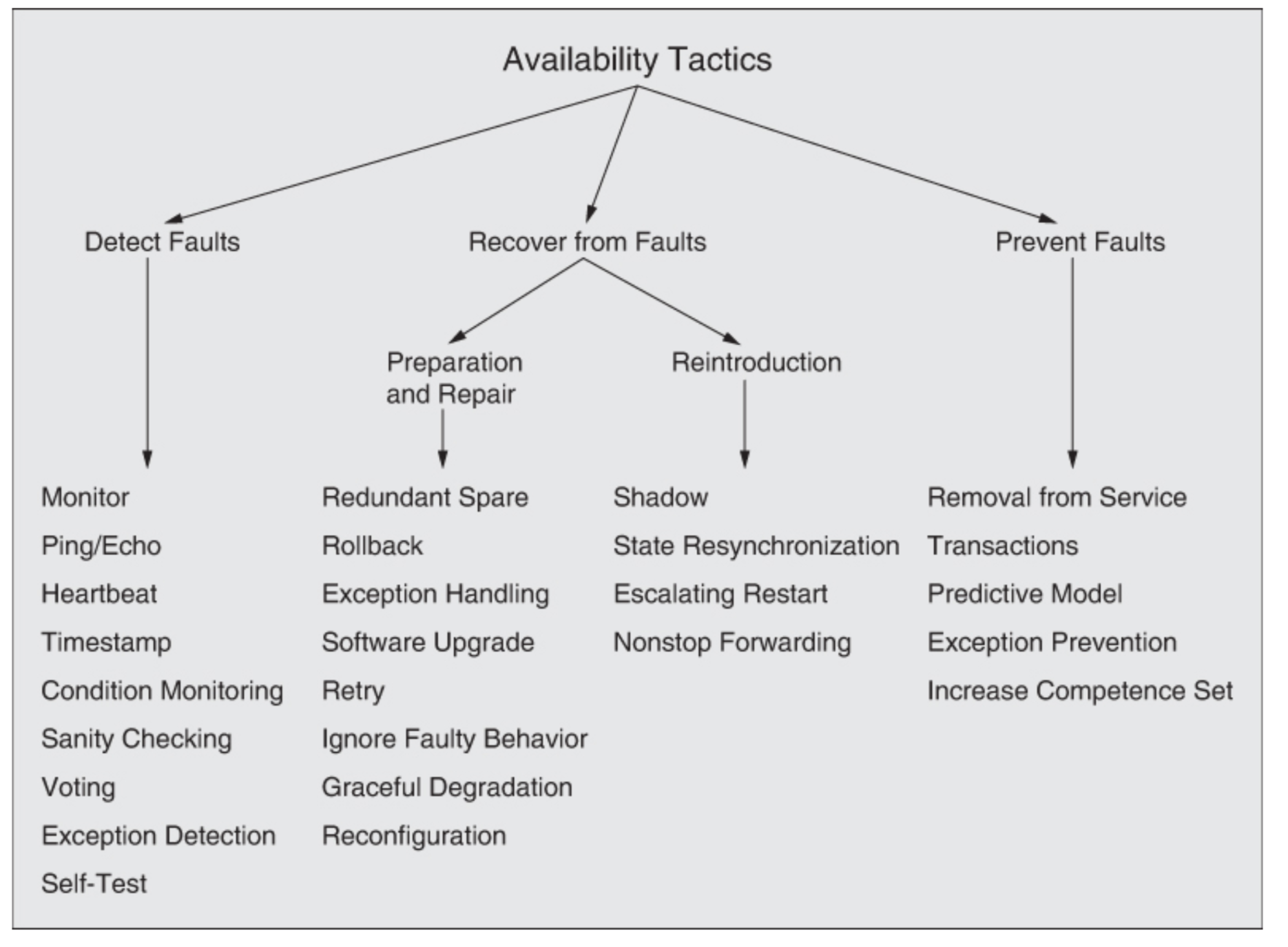

avail tactics tree

Tactics Overview

  • detecting there was a fault (otherwise, we cannot fix it and recover),
  • recovering from the fault, by being ready, and reintroducing the service;
  • preventing the fault in the first place.

Keep in mind that for each tactic there are multiple ways to actually implement it.

Fault Detection

  • Ping Echo: determine reachability and round-trip time measurements. Asynchronous.
    • Implementation concerns: voting on echos, ping delay. See ICMP
  • System Monitor/Heartbeat: detect runaway/hung process.
    • Implementation concerns: how big is the message? How many are being sent? What if the availability system itself fails?

Fault Detection (2)

  • Exception: when error occurs, wrap it in exception object to exit current execution context and enter error context.
    • Implementation concerns: asynchronous, debugging challenge. Exceptions as GoTos.

Voting

  • Voting: Triple redundant observer modules vote periodically on current state of system. E.g.,
    • air speed indicators in an airplane.
    • MongoDB uses voting to handle node partitions. If the primary goes down, the secondary servers in the replication set have to decide which becomes the new primary.
    • Implementation concerns: how many votes? Threshold for winning election.

Fault Recovery: Preparation and Repair

  • Active/Passive Redundancy: Hot/Warm redundancy, where the temperature refers to how ready the spare is. Create a protection group of a leader + spares.
  • Active: spares are synchronous with leader. Fast failover.
  • Passive: state is only synchronized periodically.

Preparation example

Can also exist at the service level: see Netflix’s Active-Active availability approach (99.99% target). Each Netflix service runs in 2 regions, and duplicates all events inside each region. Thus, a failure in AWS Us-West-2 will not affect the service, because the hot spare in US-East-1 can be called in.

  • Services are stateless - except in data tier.
  • Resources access only within a Region.
  • No cross-region calls in a given call path.

Recovery

  • Redundant Spare: ‘cold’, no synchronization. Better for reliability than availability (reliability+recovery).

Recovery (3)

  • Rollback: checkpoints are created to allow system state to be reverted if a failure occurs. E.g., in CRIU Linux systems can save current state of a program to disk.
    • Could use it to save state for future re-use. Implementation questions: how long to go before rolling back

run out rock climber

Recovery (2)

  • Software upgrade: support the ability to patch code either in real time (e.g., hot swapping using function pointers), or replace running code components.
    • See Microsoft’s dynamic patching for SQL Server in Azure (99.995%).
    • Need to design things that can be resumed/checkpointed, modify memory with new binary, then redirect instruction pointers to new/patched code. Implementation questions: hot/cold patches, how to test new patched code.

Reintroduction

  • Shadow: the failed component/service becomes a spare, and is then re-introduced as leader
  • Escalating Restart: change granularity of what is restarted, what parts of memory are initialized.
  • State Resync: using the spare to gradually synchronize the known state for the system.

Fault Prevention

  • Removal from Service: pull the faulty machine out of service and fix the underlying problems (e.g., bitrot, faulty boards). Implementation questions: mean rate of failure, how to redirect traffic.
  • Predictive Model: run health checks using a monitor/observer component and historical information. E.g. Honeycomb.io

Fault Prevention (2)

  • Transactions: Ensure that if a fault does happen, no data loss occurs. For example, 2-Phase Commit is a tactic that ensures that changes are only written to the data store if all nodes are ready to accept the transaction (distributed consensus). Combined with rollback to allow failed transactions to be “undone”.

Tactic Analysis

One use for tactics is to support reasoning using analytic models.

If we have a good understanding of the tactic, we could use approximate reasoning to get a sense for whether the tactic will help meet the desired properties.

Simulations for Availability

We could get pretty good estimates for how long a hot spare will take to assume control (say 5ms)

Then we use probabilistic modeling - Markov chains for example - to simulate and get a sense for how probable we are to meet a particular goal.

(example)

Examples in Home Assistant

What are some availability scenarios for a smart home-assistant?

  1. When I access the Hub, the Hub is always available for input.
  2. When a single IOT device fails, the Hub does not slow down processing of other events.
  3. If a power outage kills the hub, the fact it went offline is always sent to an independent log file.
  4. When an airbnb guest arrives and the owner is not home, the smart-lock can never go offline.

Summary

Availability is about detecting a problem (outage), responding to the problem, and bring the service back online, within some threshold.

Availability is commonly described in percentage of time the service is available, e.g., 99.99% of the time.

Ideally we prevent these problems in the first place!
